Did 2WW aircraft actualky have ILS ?

A Living Legend
new reply
GL_64
Airman
Posts: 24
Joined: 02 Feb 2019

Did 2WW aircraft actualky have ILS ?

Post GL_64 »

If this is true, I am flabbergasted !

User avatar
Jacques
Senior Master Sergeant
Posts: 2255
Joined: 26 Jun 2011
Location: West Coast, USA

Re: Did 2WW aircraft actualky have ILS ?

Post Jacques »

Check this out from 1943:

https://cdn.shopify.com/s/files/1/1343/ ... 7032468597

I think there is quite a bit of argument about whether it was used in wartime England, but I haven’t found anything definitive either way.

User avatar
FireRescue85
Senior Airman
Posts: 171
Joined: 28 Jul 2016
Location: New York

Re: Did 2WW aircraft actualky have ILS ?

Post FireRescue85 »

Currently reading “three engines, half a wing, and a prayer” and it shows a map of the 303’s airbase in Europe. On either end of the longest runway it has a navigational beacon, so I’m curious if they had ILS capabilities.
Fire Marshall, Firefighter/Emergency Medical Tech.

B-17G
B377
L-049

wothan
Staff Sergeant
Posts: 262
Joined: 19 Nov 2008

Re: Did 2WW aircraft actualky have ILS ?

Post wothan »

ILS systems where tested as early as 1929 in the USA. But it was not before after WW2 that it started to be used outside USA.
Germany had a similar system used at Tempelhof Airport in 1932.

Navigation beacons at that time where more like NDB's.

The kind of ILS used in P3D / FSX (MSFS2020) and what is simulated in the A2A B-17G is definitly not from WW2, but has been added to give it some IFR capability in the modern world of these simulators.
When I like to do basic flying, I turn to A2A Aircraft, cause A2A "basic" flying means "complex" procedures.

GL_64
Airman
Posts: 24
Joined: 02 Feb 2019

Re: Did 2WW aircraft actualky have ILS ?

Post GL_64 »

So we won't see the ILS gauge in any actual WW2 footage ?

User avatar
FireRescue85
Senior Airman
Posts: 171
Joined: 28 Jul 2016
Location: New York

Re: Did 2WW aircraft actualky have ILS ?

Post FireRescue85 »

GL_64 wrote:
06 Jan 2021, 14:43
So we won't see the ILS gauge in any actual WW2 footage ?
Correct. It appears as though it was only operating in Germany under the Lorenzo beam. In the original B-17 manual, the gauge that is currently an ILS gauge is a turn indicator, next to a flight indicator gyro horizon.

BUT the ILS gauge that is in the B17 is true to the first type of ILS gauge used by the US Air Force when they started using ILS.

-Scott.
Fire Marshall, Firefighter/Emergency Medical Tech.

B-17G
B377
L-049

GL_64
Airman
Posts: 24
Joined: 02 Feb 2019

Re: Did 2WW aircraft actualky have ILS ?

Post GL_64 »

Thnx for that.

Guess it's safe to say, if the war had continued, this gauge MAY have appeared a year or 2 later.....?

Luckily....and God Bless the "Bomber Boys" .....we'll never know. 👍🇬🇧🇺🇲🥂

User avatar
Nick - A2A
A2A Captain
Posts: 11804
Joined: 06 Jun 2014
Location: UK

Re: Did 2WW aircraft actualky have ILS ?

Post Nick - A2A »

GL_64 wrote:
09 Jan 2021, 06:43
Guess it's safe to say, if the war had continued, this gauge MAY have appeared a year or 2 later.....?
Just to be clear, this is a real "S.C.US ARMY I-101C" gauge that was fitted to some B-17s. It's just that the ILS simulation in FSX and P3D represents the modern world and not navaids that existed in World War 2.

https://www.worthpoint.com/worthopedia/ ... -538706931

Now, I'm not sure from which date these instruments were fitted or even if it was ever a standard factory item for the B-17G. There's quite a variety of different cockpit configurations, and of course many surviving aircraft have been extensively modified with new avionics. However, this is a period "pilot's localizer indicator" as Jacques' link above illustrates and a quick browse of B-17 cockpit photos on the internet will show a few with this gauge fitted, such as this one at Fantasty of Flight.

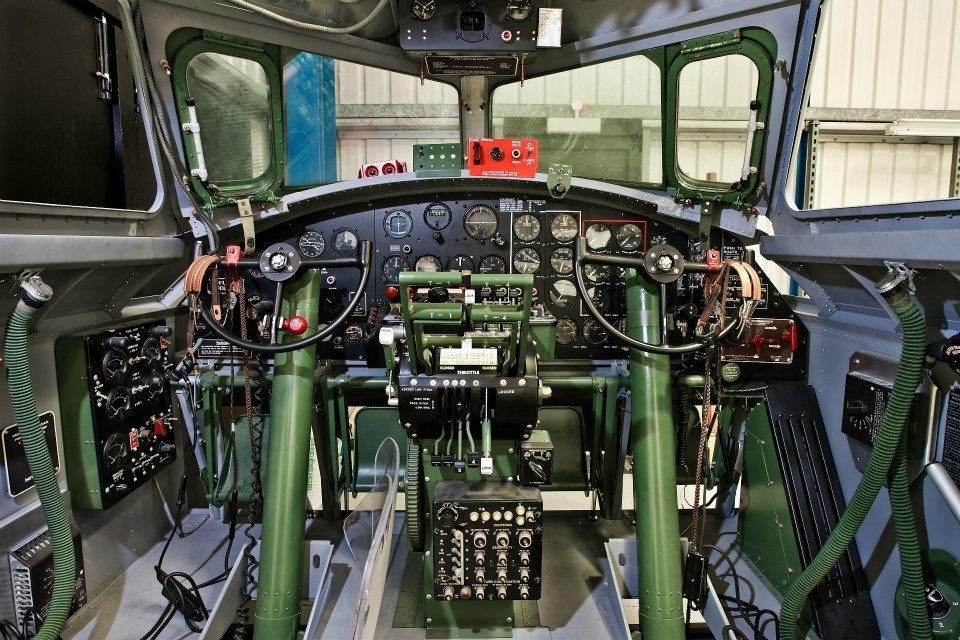

Here's another example.


Thanks,
Nick
A2A Simulations Inc.

User avatar
Jacques
Senior Master Sergeant
Posts: 2255
Joined: 26 Jun 2011
Location: West Coast, USA

Re: Did 2WW aircraft actualky have ILS ?

Post Jacques »

I would like to complete a project I started around six or seven years ago, basically a navaid scenery overlay for the bunchers and splahers. You can find,on-line, rudimentary maps of their positions but very little information about their precise location or their frequency. Bunchers and splasher were non directional beacons used in forming up the bomber streams with bunchers being local and splashers being more regional. As far as radio navaids in wartime England, these may have been the only ones available.
